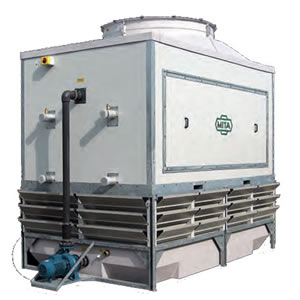

Водоохлаждаемая башня MCC - MCE |
Производитель: Mita
Features: Closed circuit cooling tower, evaporative condenser – with axial fan/s
MCC - MCE series is suggested in medium/big size plants. All models are totally pre-assembled in our workshop
Directly coupled axial motor-fan group/s, low installed po-wer, low noise levels
IP 56 Siemens motors, lockable isolating switches pre-wi-red to the motor-fan group/s to minimise site electrical con-nections
Casing and basin entirely made of FRP(fibreglass reinforced polyester resin) non-corroding material
Metal frame in hot dip galvanized steel after fabrication
Water distribution system in PVC / PP equipped with non-clog-ging spray nozzles made of PP
Certified drift eliminators in PP
Heat exchanger coils made of smooth tubes in hot dip gal-vanized steel after fabrication (for MCC series: stainless steel is available optionally). The evaporative condensers’ coils are PED certified
Basin with sloping base entirely made of FRP
Every unit can be optionally supplied with big size access doorsto simplify any maintenance operation of the coil and the internal components
Capacity: from 80 kW to 1,7 MW (indicative nominal values referred to a 5°C temperature range)
